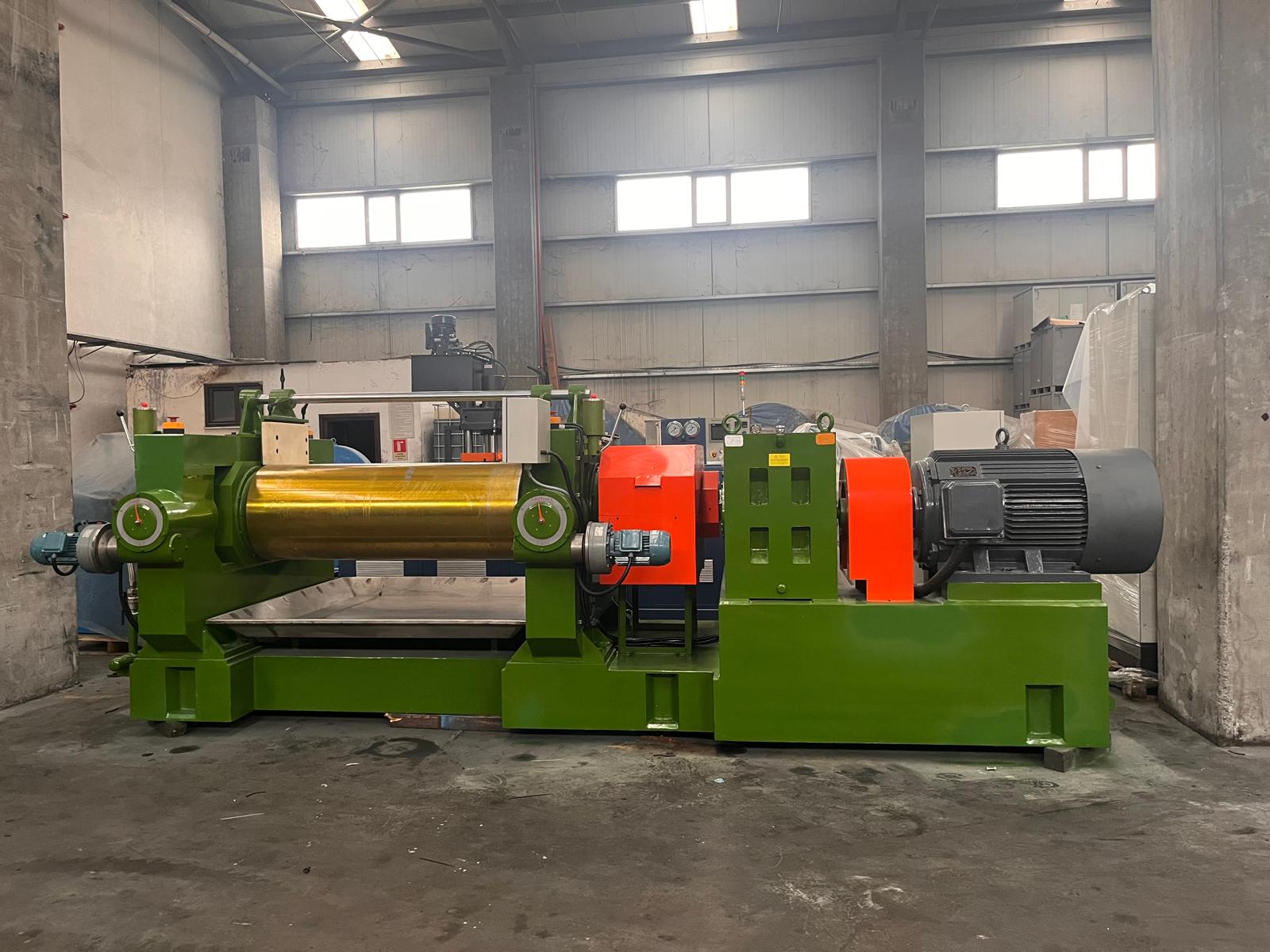

This machine consists of rollers, bearings, frame, frame cover. It consists of transmission device, compression adjuster, lubrication device, temperature regulator of cylinders, emergency stop device and braking device etc. The transmission is mainly carried out by the main engine, which drives the reducer, and then two couplings ensure the operation of the two cylinders. The speed of the rollers can be adjusted and displayed directly on the control panel. The rollers are protected by a safety mount and the roller bearings are lubricated by hand/grease pump. Safety protection is the basic arrangement for the machines and includes safety pull rod, emergency stop button and engine braking system. Rubber pulping machines are industrial machines used to convert raw rubber into molded products of a specific form. These machines ensure the production of products used in different industrial sectors while preserving the properties and quality of rubber. Dough Machine The quality of rubber products used in automotive, construction, textile and other sectors directly depends on the quality of the rubber paste. It is manufactured by keeping the safety level at the highest level in rubber dough machines. The operation side of the stock-blender option, which greatly affects the mixture-homogenization quality, is quite easy. The system that provides dough movement is quickly adjustable and hydraulic. It is very long lasting and also durable.
XK-160 | XK-250 | XK-300 | XK-360 | XK-400 | XK-450 | XK-550 | XK-560 | XK-610 | XK-660 | XK-710 | |
---|---|---|---|---|---|---|---|---|---|---|---|
Cylinder Diameter (mm) | 160 | 250 | 300 | 360 | 400 | 450 | 550 | 560 | 610 | 660 | 710 |
Cylinder Length (mm) | 320 | 620 | 750 | 900 | 1000 | 1200 | 1530 | 1530 | 1930 | 2130 | 2200 |
Front Cylinder Speed (rpm) | 17.9 | 22.2 | 16.7 | 15.7 | 15.4 | 15.4 | 16.2 | 15 | 15.9 | 13.5 | 14.3 |
Friction Ratio | 1:1.35 | 1:1.1 | 1:1.17 | 1:1.25 | 1:1.27 | 1:1.27 | 1:1.12 | 1:1.12 | 1:1.11 | 1:1.24 | 1:1.51 |
Cylinder Gap (mm) | 1-4.5 | 1-8 | 1-10 | 1-10 | 1-10 | 1-12 | 1-16 | 1-15 | 1-15 | 1-15 | 1-15 |
Dough Capacity (Kg/h) | 1-2 | 10-15 | 10-20 | 20-15 | 18-35 | 50 | 50-65 | 50-65 | 140 | 165 | 190 |
Motor Power (KW) | 5.5 | 18.5 | 22 | 30 | 45 | 55 | 110 | 90 | 160 | 185 | 280 |
Dimensions —(LxWxH) (mm) | 1133x920x1394 | 3300x1115x11345 | 4000x1600x1800 | 4200x1780x1760 | 4550x1850x1760 | 5150x1790x1830 | 6300x2230x1900 | 6050x2282x1900 | 6575x2910x2000 | 6700x3400x2100 | 8185x3910x2270 |
Weight (Ton) | 2 | 3 | 8.5 | 6.5 | 8.5 | 11.5 | 22 | 22.5 | 44 | 49 | 59 |
